An overview of BMM’s profile

B. An overview of BMM’s profile#

Once upon a time, the advice from Bluesky’s developers was to populate a profile_collection folder with python files containing the beamline customizations. These files would start with a two digit number from 00- to 99- – that is, files like 30-detectors.py or 17-motors.py. These files would be imported into the main namespace of the IPython session in numeric order.

As BMM’s profile grew in size and complexity, this system of ordered, numbered files all imported into the main namespace became increasingly unweilding, hard to maintain, and hard to extend.

At Dan Allan’s suggestion, we took a different approach.

B.1. The startup folder#

The startup folder is a symlink to a folder on Lustre where BMM’s profile is kept. If bsui does not start with BMM’s profile, make that symlink by doing the following:

cd ~/.ipython
ln -s /nsls2/data3/bmm/shared/config/bluesky/profile_collection

If a folder called profile_collection already exists at that location – which would be the case if you have already used bsui or ipython – go ahead and rename or delete that folder.

The top folder of the profile contains a single python file. It follows the old convention in that it is named 00-populate-namespace.py and is read as soon as IPython starts.

There are three files in the startup folder:

00-populate-namespace.py

This is the first file ipython loads as it starts bsui. See Section B.3.

BMM_configuration.ini

This windows-style INI file contains configuration information for the instrumentation and network services at the beamlines.

rois.json

This is a small database of ROI definitions used by the XSpress3 configuration.

user_group_permissions.yaml

This is a configuration file used by queueserver to grant access to plans according to authentication

Beneath the startup folder, there are several sub-folders:

BMM/

the bulk of the code used for data acquisition.

consumer/

the code used by the process that captures Kafka messages and generates plots for real-time and other data visualization (Section C)

BMM_common/

code shared by data acquisition and the Kafka consumer

lookup_table/

the spreadsheet with the look up table of motor positions used by the change_edge() command (Section 7)

standards/

the spreadsheet for working with BMM’s collection of measurement standards

ML/

the data used for the machine learning data evaluation model (Section 9.9)

telemetry/

the data used for the time estimates of XAFS and other scans (Section 9.8)

dossier/

files used to construct dossiers (Section 12.4)

tmpl/

template files used for dossiers, INI files, and other templated materials

xlsx/

empty spreadsheet examples for the various forms of automation (Section 11)

B.2. BMM_configuration.ini#

This files controls configuration details for measurement instrumentation and network services. The concept is that this file is edited prior to starting bsui to reflect the current state of the beamline and the needs of the current experiment.

Much of this file consists of flags for turning specific instruments on and off when starting bsui. For example, this section is used to enable or disable the use of the Pilatus 100K area detector and the Dante readout for the NSLS-II germanium detector in XAS experiments.

[detectors]
# use Pilatus 100K as an available detector
pilatus = False
# use the DANTE at xf06bm-edxd1
dante   = False

Additionally, there are sections with flags for controlling

  • electrometer use for ion chambers and the electron yield detector

  • which silicon drift detectors are in use

  • which cameras (usb, analog, web) are in use

  • special instrumentation needs, e.g. Linkam stage, Lakeshore temperature controller, or radiological enclosure

Additional sections control configuration for

  • the network addresses of various services or disk locations containing files and folders needed for proper operation of bsui at BMM

  • for both the new NSLS-II Slack workspace and the older, deprecated BMM Slack workspace

B.3. The IPython namespace#

The 00-populate-namespace.py file contains a single line:

from BMM.user_ns import *

This tells python to read the BMM/user_ns/__init__.py file and follow it’s instructions. That file, in turn, imports each of the files in the BMM/user_ns/ and imports those symbols into the main IPython namespace.

This is different from the old-fashioned approach in that the files in BMM/user_ns/ contain a more carefully curated group of symbols to be imported into the main namespace.

Most of the code for creating ophyd objects, defining plans, establishing automation, and so on is contained in the files found in the BMM folder. And most of that is not imported into the main namespace.

A motif used in almost every file in the profile is this one:

from BMM import user_ns as user_ns_module
user_ns = vars(user_ns_module)

This allows functions and plans defined in the files in the BMM folder to have access to symbols from the user namespace without either importing the entire main namespace or exporting additional symbols to the main namespace.

This, perhaps, makes the code in BMM a bit clunkier. For example, a motor name like xafs_x which is defined in the main namespace cannot be directly accessed by a module in BMM. Instead, it is accessed as user_ns['xafs_x']. A bit of extra typing, but it makes for code that is more robust and more readily maintainable and extensible.

B.4. Managing bsui and queueserver#

A common motif found in many files, including BMM/user_ns/__init__.py, looks like this:

try:
   from bluesky_queueserver import is_re_worker_active
except ImportError:
   def is_re_worker_active():
       return False

This is used to allow a plan or some other bit of code to know whether it is being run under bsui or queueserver.

bsui is, by design, run on the same workstation with which the experimenter is interacting. queueserver is, by design, run on a remote server. Having a way to distinguish the two is essential. For example, there are many plans which, when run with bsui, stop to prompt for an interaction from the user. Such prompts need to be disabled when running under queueserver.

B.5. Profile start-up as a narrative#

Early in the loading of the profile, a function called run_report() is defined. This function is defined in BMM/functions.py and called near the top of BMM/user_ns/bmm.py, which is the second file loaded by BMM/user_ns/__init__.py. So, it is defined very early in the process of loading the profile.

This is used to write a message to the screen explaining what chore is being done during start-up or what file is being loaded. As such it is very similar to the common python idiom of

print(__file__)

to identify the module or source code file being loaded. While similar in concept, it is a bit more suited to our purpose.

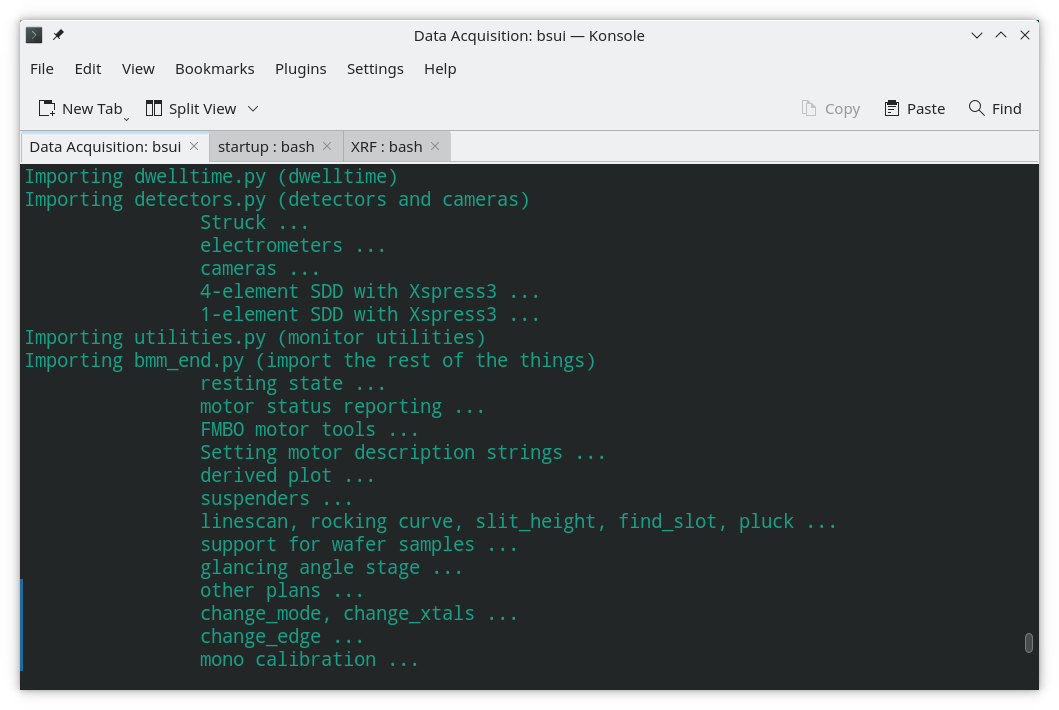

_images/bsui_startup.png

Fig. B.1 Screen messages during bsui start-up.#

For one thing, it applies consistent coloring to the text. In that way the user knows that that color is a progress report explaining what is happening at that moment. That is helpful for debugging problems in that it gives a hint where to look when the problem presents itself.

For another, it is a consistent way to write any progress message to the screen. For example,

run_report(__file__)

would behave very similarly to the idiom. However, the way it is used throughout the profile is in lines like this:

run_report('\tglancing angle stage')

This is the message that appears on screen as the ophyd objects and automation procedures related to the glancing angle stage (Section 5.7) are imported. As you can see in the screenshot, one such message is issued for every major component of the profile.

Taken together, this sequence of messages provides a start-up narrative that tells the user something about what capabilities are available and provides the code maintainer/developer some hints about where to look in the code base for various features.

B.6. Profile start-up as acceptance testing#

At NSLS-II, beamline staff are asked to develop ways to do acceptance testing to verify things like recovery from power failures, or upgrades of computer operating systems, upgrades of conda and python.

At BMM, we have chosen not to develop one-off or on-delivery acceptance testing practices. Instead, acceptance testing is built right into BMM’s profile.

Very early in profile start-up, several basic functions are checked for, including:

  1. Verify that Channel Access Security is configured for read/write access

  2. Verify that the LAN is up and that IOC servers can be pinged

  3. Verify that various necessary folders on the local machine can be found

  4. Verify that Lustre mounts can be found

  5. Verify that authentication keys (e.g. for Slack) can be found

  6. Verify that a redis server can be found

If any of these tests fail, the profile stops loading and issues a (hopefully) useful error message.

As the profile continues loading, it runs a variety of tests, such as:

  1. Verify that beamline state and user configuration can be obtained from redis

  2. Establish all necessary user configuration

  3. Check each axis to verify that it is connected

  4. Check each axis to verify that it is homed, or identify those that are used without homing

  5. Verify that detectors are started correctly (e.g. the XSpress3 needs to save an HDF5 file to initialize file saving)

  6. Initialize the hinted ROI from the XSpress3 using data from redis

In short, the concept is that the profile is instrumented to do acceptance testing every time it starts. If anything is found to be missing, it can be noticed and addressed immediately.

B.7. Core Bluesky functionality#

The file BMM/user_ns/base.py is used to define core features of the bluesky ecosystem:

  • The plan stubs mv, mvr, and sleep are imported into the main namespace

  • nslsii.configure_base() is called appropriately for bsui or queueserver

  • Some configuration of best effort callbacks is done

  • A Tiled catalog is created

  • A ZeroMQ publisher is defined.

All of this happens before any BMM-specific code is run.

B.8. Everything in the BMM folder#

Here’s a brief summary of every module in the BMM profile.

file

purpose

actuators.py

define shutters and valves

agent_plans.py

BMM-specific ML agents

areascan.py

define an area scan plan

busy.py

define a “wall clock” motor

camera_device.py

interact with AD and non-AD cameras

db.py

utilities for working with DataBroker

dcm.py

define monochromator ophyd objects

dcm_parameters.py

mono calibration parameters

demeter.py

athena and hephaestus integration

derivedplot.py

deprecated plotting capabilities

desc_string.py

fix epics motor DESC fields for CSS

detector_mount.py

mostly deprecated tools for xafs_detx

dossier.py

manage writing of dossier files

dwelltime.py

coordinate dwell time across detectors

edge.py

change edge

electrometer.py

ophyd objects for QuadEM and related

energystep.py

simple plan for I0 vs. energy

fmbo.py

FMBO motor controller tools

frontend.py

ophyd objects for front-end devices

functions.py

miscellaneous utilities

gdrive.py

interact with Google drive (deprecated)

glancing_angle.py

define glancing angle stage + automation

grid.py

generic grid automation

handler.py

DataBroker handler for images

kafka.py

Kafka producer for profile

killswitch.py

interact with FMBO controller kill switches

lakeshore.py

LakeShore temp. controller

larch_interface.py

connect to Larch XAFS functionality

linescans.py

generic and specific motor scans

linkam.py

Linkam stage temp. controller

logging.py

various logging tools

macrobuilder.py

base class for automation

metadata.py

manage metadata

mirror_trigonometry.py

incomplete tools for mirrors and distances

ml.py

data evaluation tools

modes.py

manage lookup table and PDS modes

mono_calibration.py

energy calibration tools

motor_status.py

motor status reporting tools

motors.py

ophyd objects for motors

periodictable.py

periodic table tools

pilatus.py

Pilatus tools

plans.py

simple plans, power cycle recovery plans

prompt.py

customize IPython prompts

purpose.py

deprecated

raster.py

areascan measurement + dossier

resting_state.py

put beamline in a defined resting state

rois.py

deprecated, struck tools

slits.py

ophyd objects and tools for BL slits

struck.py

deprecated |nd| interact with Struck

suspenders.py

define suspenders

telemetry.py

tools for scan telemetry and time estimates

timescan.py

time sequence plan

usb_camera.py

interact with USB cameras

user.py

define and manage the BMMuser object

utilities.py

inetract with BL EPS and utilities

video.py

record videos from USB cameras

wafer.py

tools for wafer samples

wdywtd.py

deprecated user help tools

webcam_device.py

interact with Axis webcams

wheel.py

tools for ex situ sample wheel

workspace.py

acceptance tests for working environment

xafs.py

XAFS plan definition + dossier

xafs_functions.py

XAFS-related tools

xdi.py

XDI formatting tools

xspress3.py

XSpress3 tools

xspress3_1element.py

customizations for 1 element detector

xspress3_4element.py

customizations for 4 element detector

xspress3_7element.py

customizations for 7 element detector
